H4 WiFi/GSM Home Cloud System


分類: ,

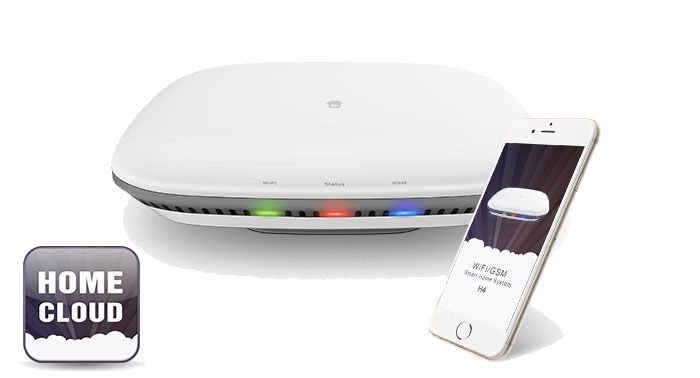

Chuango H4 WiFi/GSM Home Cloud System


Alarmingly Smart
The H4 is your ultimate gateway to a smart and secure home. With a regular SIM card with credit or Wi-Fi connection, the system can be controlled via smartphone APP commands. When triggered, the system will push text notifications and call out to preprogrammed numbers for appropriate action.



Secure & Smart

Aside from regular Chuango security capability and functionality, the H4 also controls and saves power for your home appliances that are plugged into smart switches.

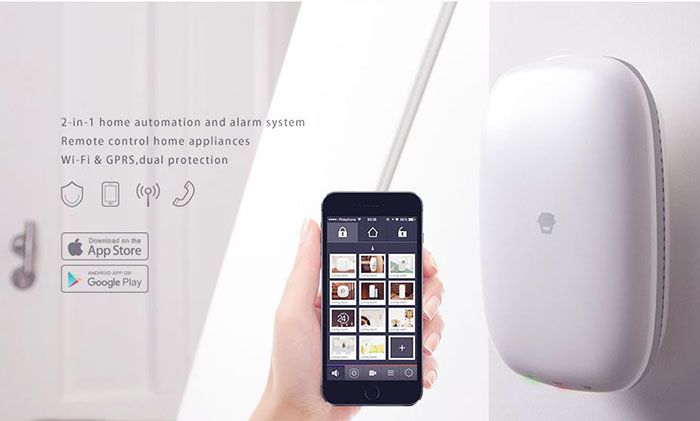

Remote Wonders

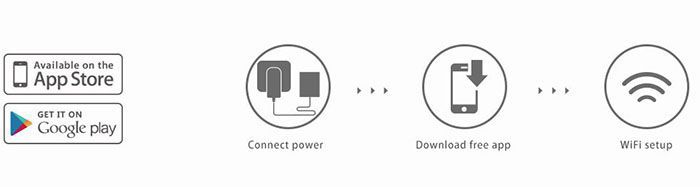

Download the H4 APP from either App Store or Google Play, and you can control the alarm system and home appliances with just a few swipes and taps from anywhere in the world.

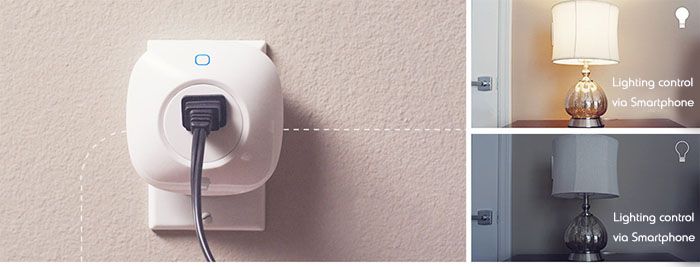

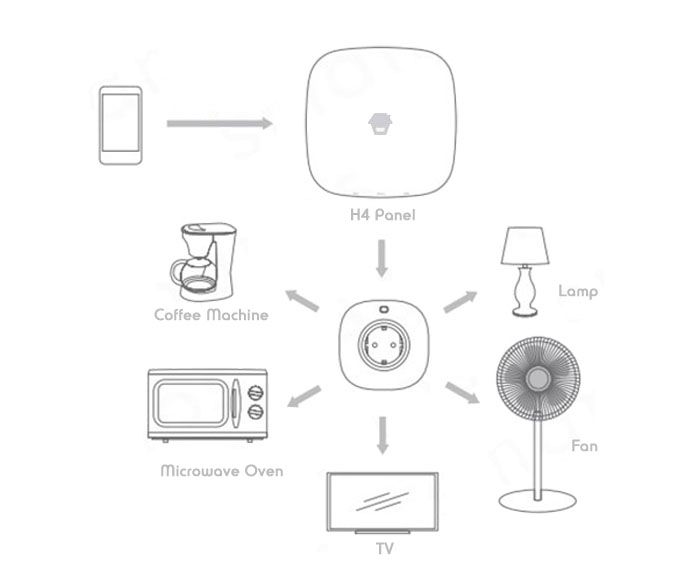

Control your home appliance remotely

Home appliance switches can be freely controlled through the application from your smartphone.

Model: H4
Power Supply: DC 12V 500mA
Built-in Battery: 3.7 V 800 mAh Lithium Battery (BL-5B)
GSM Operating Frequency: 850/900/1800/1900 MHz
WiFi: IEEE 802.11b/g/n
Standby Current: <100 mA
Alarm Current: <300 mA
Internal Siren Volume: 105 dB
Max. No. of Connectable Wireless Accessories:
10 Remote Controls, 40 Detectors, 20 Smart Switches
Wireless Radio Frequency: 433MHz
Casing Materials: ABS Plastics
Operating Conditions: Temperature: 0°C ~ +55°C
Relative Humidity: <80% (No Condensation)
Size of Alarm Panel (L x W x H): 160 x 160 x 45 mm
Size of Stand (L x W x H): 80 x 80 x 10 mm
Package Details
H4 Home Cloud System x 1
RC-80 Wireless Remote Control x 2
DWC-102 Wireless Door/Window Contact x 1
PIR-910 Pet-Immune PIR Motion Detector x 1
H4-PW Smart Switch x 1
